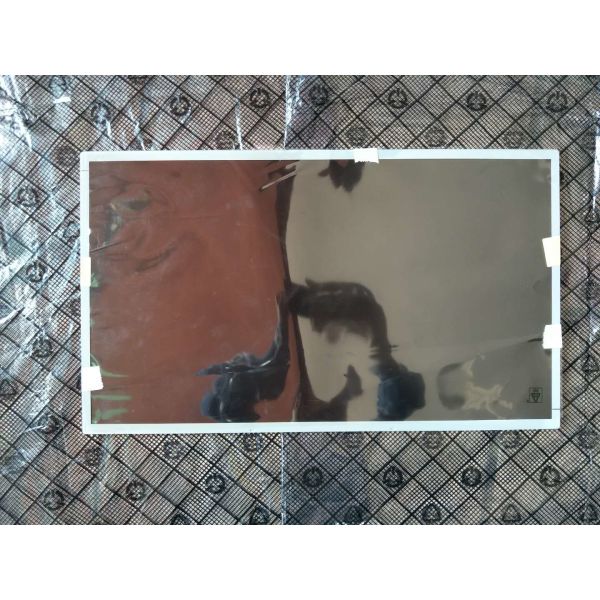

21.5" WVGA 102PPI FHD TFT LCD Panel 250cd/m2 LM215WF3-SLS2 89/89/89/89 (Typ.)(CR≥10)

Name: 215quot WVGA 102PPI FHD TFT LCD Panel 250cdm2 LM215WF3SLS2 89898989 TypCR10
Brand: LG DISPLAY
Price: 1 USD

China 21.5" WVGA 102PPI FHD TFT LCD Panel 250cd/m2 LM215WF3-SLS2 89/89/89/89 (Typ.)(CR≥10) wholesale

Brand Name : LG DISPLAY

Model Number : LM215WF3-SLS2

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 2000PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : LM215WF3-SLS2

TEMPERATURE RANGE : Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

VIEWING ANGLEG : 89/89/89/89 (Typ.)(CR≥10)

RESOLUTION : 920(RGB)×1080 [FHD] 102PPI

Lamp Type : WLED

BRIGHTNESS : 250CD/M2

SIZE : 21.5 inch

BRAND : LG DISPLAY

Contact Now

LG Display LM215WF3-SLS2 Application Details

Basic Information :	Brand		Model	LM215WF3-SLS2
	Type	LCM a-Si TFT-LCD	Used For
	Screen Size	21.5"	Alias	LM215WF3 (SL)(S2)
Environment :	Storage Temp.	-20 ~~ 60 °C	Operating Temp.	0 ~~ 50 °C
Environment :	RoHS		Vibration	1.0G (9.8 m/s²)

LG Display LM215WF3-SLS2 Mechanical Details

Pixel Features :	Resolution	1920(RGB)×1080, FHD	Dot Pitch(mm)	0.08265×0.24795 (H×V)
Pixel Features :	Pixel Format	RGB Vertical Stripe	Pixel Pitch(mm)	0.24795×0.24795 (H×V) [102PPI]
Mechanical Size :	Active Area(mm)	476.064(H) × 267.786(V)	Bezel Area(mm)	479.8(H) × 271.3(V)
Mechanical Size :	Outline Dim.(mm)	497.6(H) × 292.2(V)	Depth(mm)	8.9/11.0 (Typ./Max.)
Outline Features :	Form Style	Flat Rectangle	Outline Shape	Normal bezel
Outline Features :	Aspect Ratio	16:9 (H:V)	Orientation	Landscape type
Mounting :	Side mounting holes (4-M3) on left, right bezel
Other Spec :	Weight	1.69/1.77Kgs (Typ./Max.)	Treatment	Antiglare (Haze 25%), Hard coating (3H)

LG Display LM215WF3-SLS2 Optical Details

Basic Information :	Luminance(cd/m²)	250 (Typ.)	Contrast Ratio	1000:1 (Typ.) (Transmissive)
	Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	Display Mode	IPS, Normally Black, Transmissive
	Best View on	Symmetry	Response(ms)	14 (Typ.)(G to G)
Color Performance :	White Coordinate	X:0.313; Y:0.329	Display Colors	16.7M (6-bit + Hi-FRC)
Color Performance :	Color Temperature	6485K	White Uniformity	1.33 (Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio	74%	sRGB	94% coverage
	Adobe RGB	73% coverage	DCI-P3	77% coverage
	Rec.2020	55% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

LG Display LM215WF3-SLS2 Interface Details

Signal Electrical :	Voltage Supply	5.0V (Typ.)		Current Supply	600/740mA (Typ./Max.)
Signal Electrical :	Consumption	3.0/3.75W (Typ./Max.)
Signal Type :	LVDS (2 ch, 8-bit)			Signal Voltage	-
Interface Features :	Position			Type	Connector
Interface Detail :	Brand	Model	Quantity	Pins	Pitch	Pin Configuration
Interface Detail :	UJU	IS100-L30O-C23	1 pcs	30 pins	1.0 mm	LVDS-30P2C8B-160B

LG Display LM215WF3-SLS2 Backlight Details

Backlight Features:	Shape	2 strings	Type	WLED	Position	Edge light type (Right side)
Backlight Features:	Replacement	-	Quantity	17S2P	Life Time	30K(Min.) (Hours)
Lamp Electrical :	Voltage Supply	48.6±3.4V		Current Supply	70/75mA (Typ./Max.)
Lamp Electrical :	Consumption	6.8/7.3W (Typ./Max.)
Interface Features :	Position			Type	Connector
Interface Detail :	Brand	Model	Quantity	Pins	Pitch	Pin Configuration
Interface Detail :	YEONHO	10035WR-H06D	1 pcs	6 pins	1.0 mm	BLE-6PINS-CNAANC
Backlight Driver :	No

LG Display LM215WF3-SLS2 Packing Details

Package Box :	Quantity	Weight	Box Size
Package Box :	12 pcs / box	-	365×315×568 mm (L×W×H)

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
